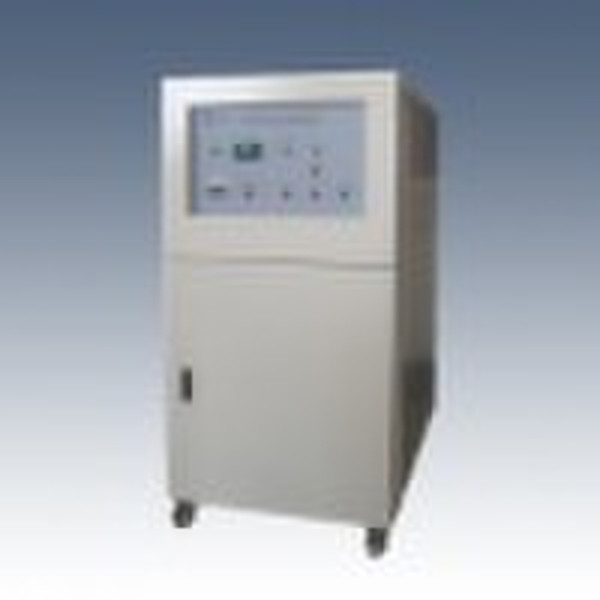

Impulse magnetizer

MPS-20C Capacitance type magnetizer is invented by the Loudi Linkjoin electromagnetic test institution, produced by Hunan Linkjoin Technology Co., Ltd. The power is designed by optimized current, the storage capacitance adopt the high voltage, long lifetime, immerse-oil power. The test method is strict; long working lifetime; strict selection of materials and own the best cost performance. Especially suitable for the magnetizing of high inner coercive force permanent magnet, such as rare earth permanent magnetic materials, and the magnetizing of kinds of motor and big scale amplifier. Continuous adjustment of power output voltage, convenient to control the intensity of magnetizing (or demagnetizing) field. We can also design variety of fixtures for magnetizing or demagnetizing. In accordance with the requirements of users to increase the demagnetization function, while providing various match magnetizing fixture. General FeaturesModelMPS-20C16/20MPS-20C24/30MPS-20C36/40Power Source380 V ±20 V, 20 A380 V ±20 V, 30 A380 V ±20 V, 40 AMax Output Current20,000 A30,000 A40,000 ACharging Time6 seconds10 seconds12 secondsOutput Voltage50 - 2000 V50 - 2000 V50 - 2000 VCondenser Cap1600 μF3200 μF4800 μFMax Output Energy3,200 J6,400 J9,600 JMain Control ElementSCRDimension600 mm W × 600 mm D × 1200 mm H (× 1, or × 2, or × 3)Weight150 kg250 kg350 kg
